Charger Power Supplies

20Amp Power Supplies now available

Enough power to charge 8S Lithium cells (or 24 Ni-Cd's) at 5 Amps

  The ideal Power Supply for home charging
  No need to charge from a car battery anymore
  Charge where you can keep a watchful eye on those LiPo's
  Works with most 12V field chargers, i.e. Swallow, Triton, Infinity, Hyperion, etc.
  A special circuit boosts the output voltage for extreme charging
  Made from brand new quality components

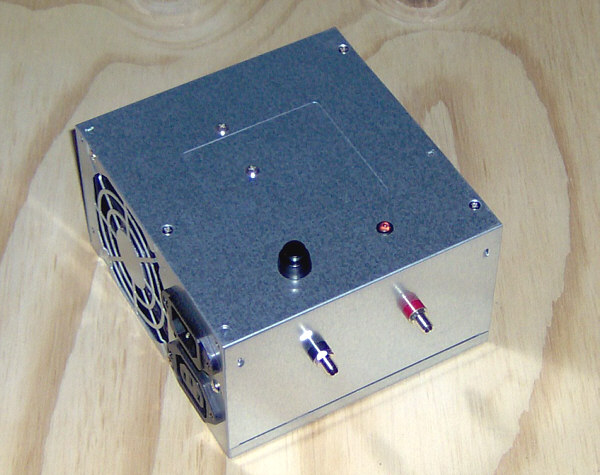

Bavaria
Single PSU

R675.00

20Amp, Single Output Power Supply
For powering 1 charger

Specifications & Features:
1 x 12Volt, 20Amp output
230V or 115V input
Switching power supply with internal fan
Output over-voltage, short-circuit, and over-current protection
MTBF: 100,000 hours on maximum load at +25C

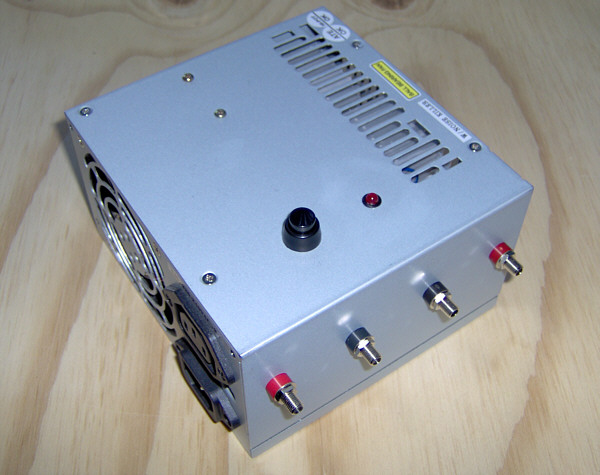

Bavaria
Dual PSU

R975.00

2 x 20Amp, Dual output Power Supply

For powering 2 chargers simultaneously
Double the output power of the Bavaria Single PSU model

Specifications & Features:
2 x 12Volt, 20Amp outputs (dual 12V rail)
230V or 115V input
Switching power supply with internal fan
Output over-voltage, short-circuit, and over-current protection
MTBF: 100,000 hours on maximum load at +25C



The Bavaria PSU will "outperform" most chargers on the market today.

Ideally, a Power Supply (PSU) should be able to maintain an output voltage that's higher than the "minimum required input voltage" of the charger. With normal switch mode PSU's, the output voltage gets lower, the harder a PSU works, but the Bavaria PSU has a special circuit to boost the output voltage during high Watt demands.

Most field chargers can only operate on supply voltages between 9V and 15V. Some even need a minimum of 11V input voltage (for example Swallow chargers). Therefore, if the supply voltage drops below the "minimum required input voltage", the charger will not be able to charge anymore. In such an event, some chargers display a "Low Input Voltage" error message and stop charging, while others just switch off.

The output voltages that were measured under actual charging conditions, confirm that the special circuit that's built into the Bavaria PSU, boosts the output voltage during high Watt demands. Even with extremely high charge rates, the output voltage will stay close to 12Volts, ensuring a high enough supply voltage to the charger.


Typical output voltages under various load conditions:
    12.9V at 48W  (3.7A)  - charging 3S LiPo's (8 Ni-Cd's)  @ 5A
    12.2V at 148W  (12A)  - charging 6S LiPo's (15 Ni-Cd's)  @ 5A
    11.9V at 240W
* (20A)  - charging 10S LiPo's (23 Ni-Cd's)  @ 5A


* Warning
It's not recommended to charge at these high rates.  We found that the banana plugs on charger leads overheated quite rapidly.
